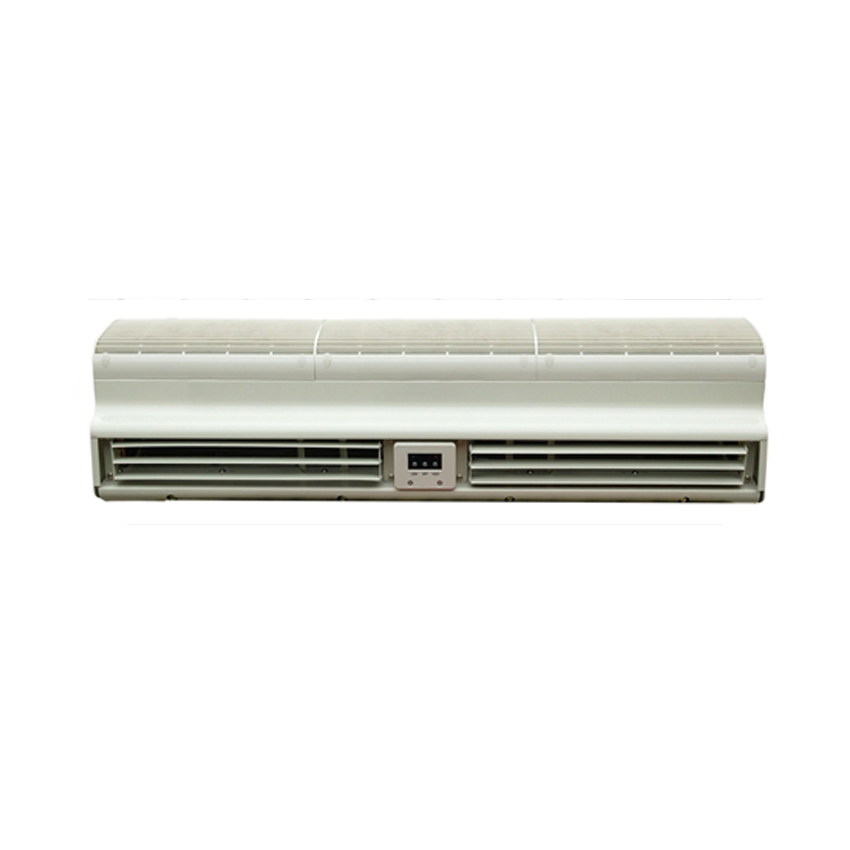

National Brand 4 Feet Air Curtain, model: FM-1.5-12B

Description

FM-1.5-12B || National Brand 4 Feet Air Curtain.

FM-1.5-12B || National Brand 4 Feet Air Curtain in Bangladesh.

Capacity/Size: 4 feet / 1200 mm / 48 inch.
Model: FM-1.5-12B
Applicable/Effective: Door Width 4’ & Door Height 10’.
(Automatic Restart Function, Manual & Wireless Remote Controller Both Operations)

Made In: Malaysia.

Exclusive Warranty:

1. 01 Yr Motor- Warranty,
2. 01 Yr Spare Parts,
3. 01 Yr After Sales Service (free of cost).

Technical Specifications (FM-1.5-12B):

1. Power Supply: 220-240V/1Ph/50Hz.
2. Flow Type: Sleek Cross Flow.
3. Applicable: Door Width-4’, Door Height-10’.
4. Power Consumption: 340 W.
5. Air Flow: 3900 m3/hr / 2297 CFM.
6. Air Speed: 15 m/s / 3000 FPM.
7. Noise Level (Low/High): 56/59 dB(A).
8. Dimension (WxDxH): 1200x266x265 mm.
9. Net Weight/Gross Weight: 21/23 Kg.

Special Features (FM-1.5-12B):

1. Produces high-speed air barrier, dividing areas into 02 independent temp zones.
2. Prevents loss of cool or warm air.
3. Save Energy.
4. Dust and insect-control.
5. Protects against entry of smoke and noxious fumes.
6. Soot and dust particle away in the grubby environment of industries.
7. Easy to Install & Maintenance.
8. Manufacture from the superior quality material.
9. Ensures durability for a long run.
10. Helpful in various applications.
11. Operating Switch (Low/Off/High).
12. Effective up to 10 ft floor heights.
13. Available size in 3ft / 4ft / 5ft.

Air Curtain Applications:

1. Cold Storages.
2. Restaurants.
3. Warehouse/Distribution Centers.
4. Food Processing Plants.
5. Supermarkets/Shopping Mall.
6. Commercial Front Door Entrances.
7. Hospitals.
8. Retail Stores.
9. Bakeries.
10. Pharmaceuticals & Clean Room.
